Beskrivning

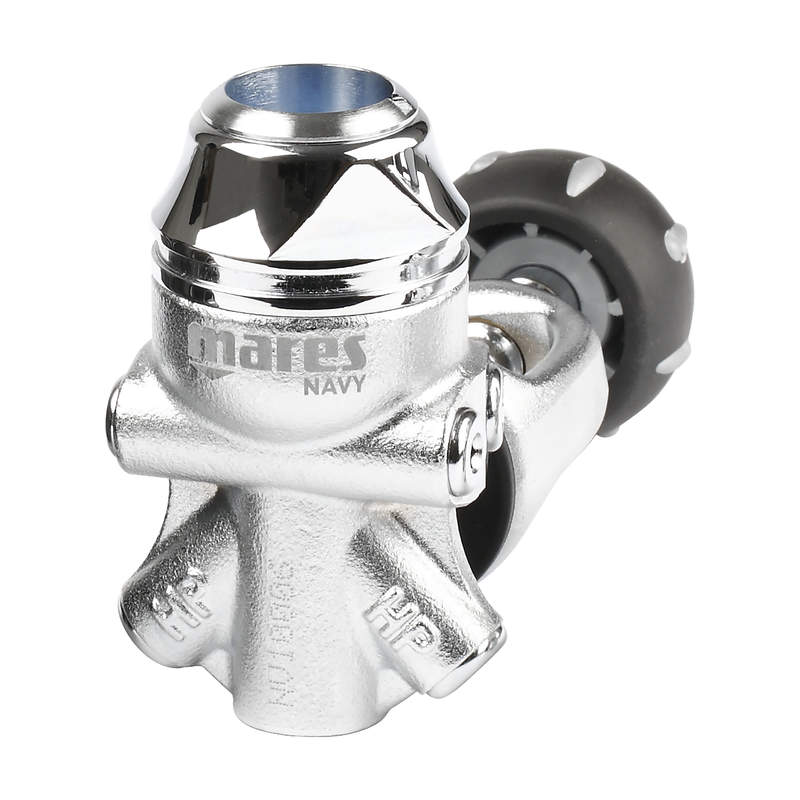

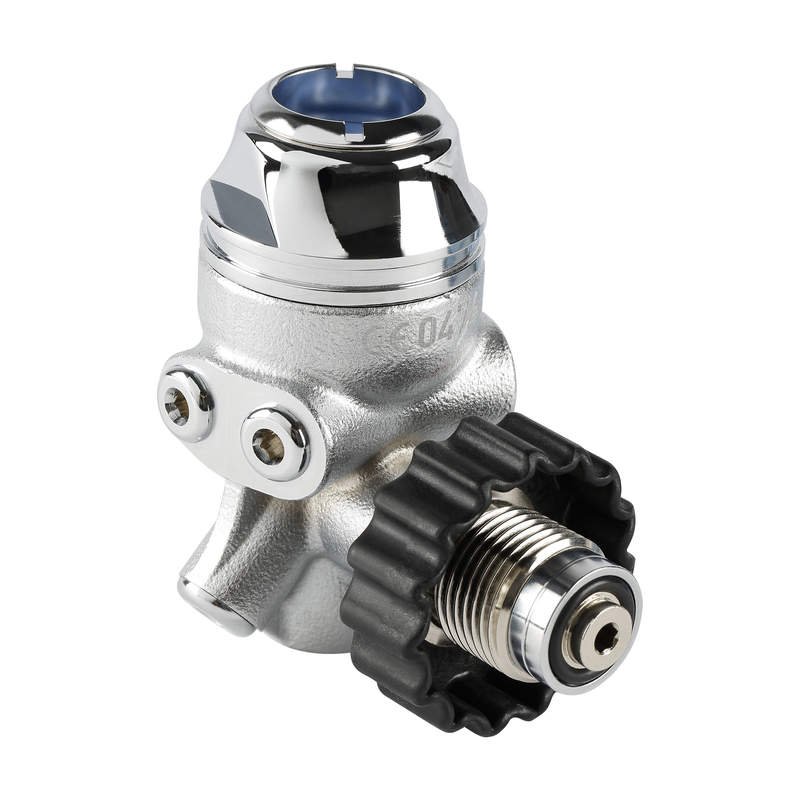

Abyss Navy II First Stage
The Abyss Navy II first stage is highly reliable, even under extreme diving conditions. Equipped with a high flow rate and pre-oriented DFC outlets. The regulator comes with a special kit for dives in especially cold water. This first stage is approved by the US Navy since it has passed the high standards required by the US Naval Forces. It was specifically tested on extreme dives (30-minute duration, 60m depth, 62.5 l/min ventilation, -2°C water temperature, 6-minute ascent in both fresh and salt water, constant cylinder pressure of 170bar).

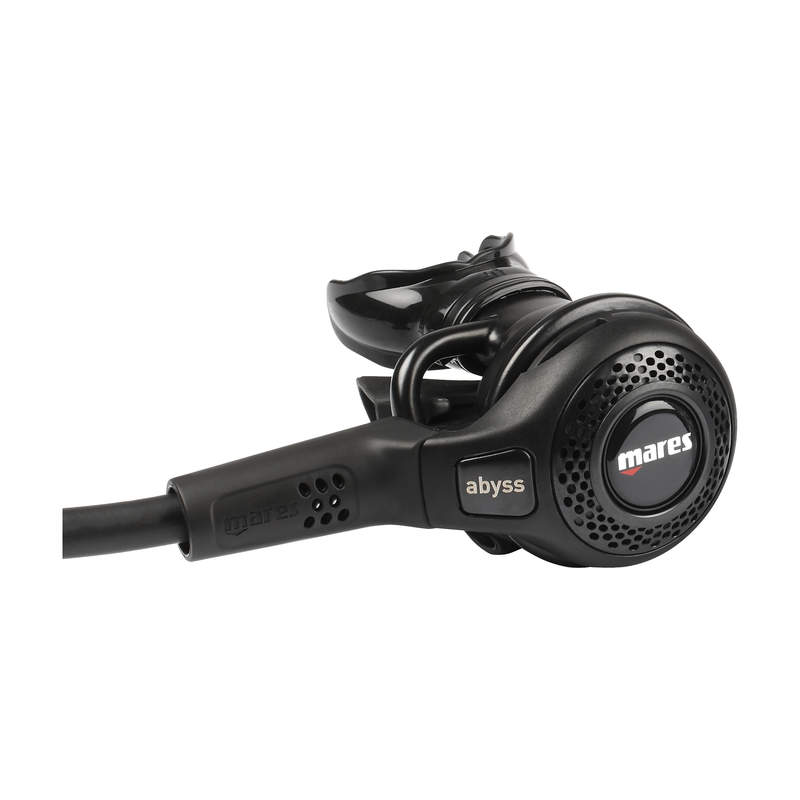

Abyss Navy II Second Stage
The Abyss Navy II second stage is covered with a special fluorinated polymer resin finish. It features a Vortex Assisted Design (VAD) system that enables dynamic airflow, ensuring natural and easy breathing at any depth. The cover features a Mesh-Grid system to optimise water inlet and outlet flows, which offers further improved performance, even during strong currents while diving. The Abyss Navy II second stage is reliable, durable and ideal for diving in the most extreme cold water conditions.

FACTS
Material – All Metal Technology
First Stage – Balanced Diaphragm
HP Ports – 2 HP 7/16” UNF
LP Ports – 1 LP 1/2” UNF port, 3 LP 3/8” UNF

TECHNOLOGY
MESH GRID
Patented design which reduces the impact of water flow onto the second stage diaphragm, thus eliminating free flows even in strong currents.
ALL METAL TECHNOLOGY
Outstanding mechanical reliability and high thermal conductivity make our metal 2nd stages extremely long lasting and ideal for cold water dives. The high thermal conductivity of metal reduces also the dry mouth feeling during the dive.
VAD – VORTEX ASSISTED DESIGN
The air bypass tube delivers air to the mouthpiece creating a swirling vortex with a low pressure area in the center that keeps the diaphragm down during inhalation, for very sensitive and easy breathing at all depths.
DFC – DYNAMIC FLOW CONTROL
Minimizes intermediate pressure drop during inhalation thus maximizing gas delivery, especially under extreme conditions.

TECHNICAL SPECIFICATION
First stage weight INT
850g / 30oz
First stage weight DIN 300
685g / 24.2oz
Second stage weight
269g / 9.5oz
Total weight INT
1337g / 47.2oz
Total weight DIN300
1172g / 41.3oz
